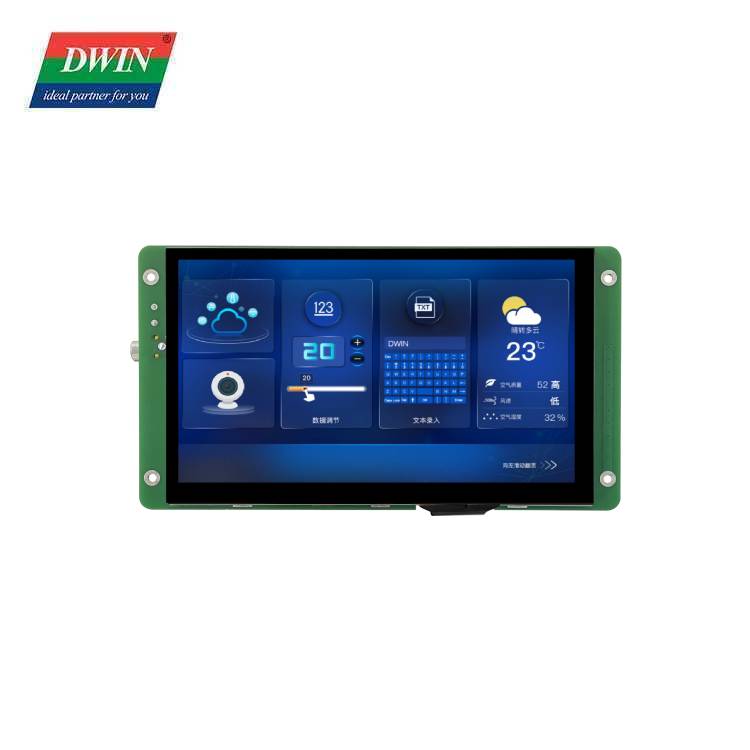

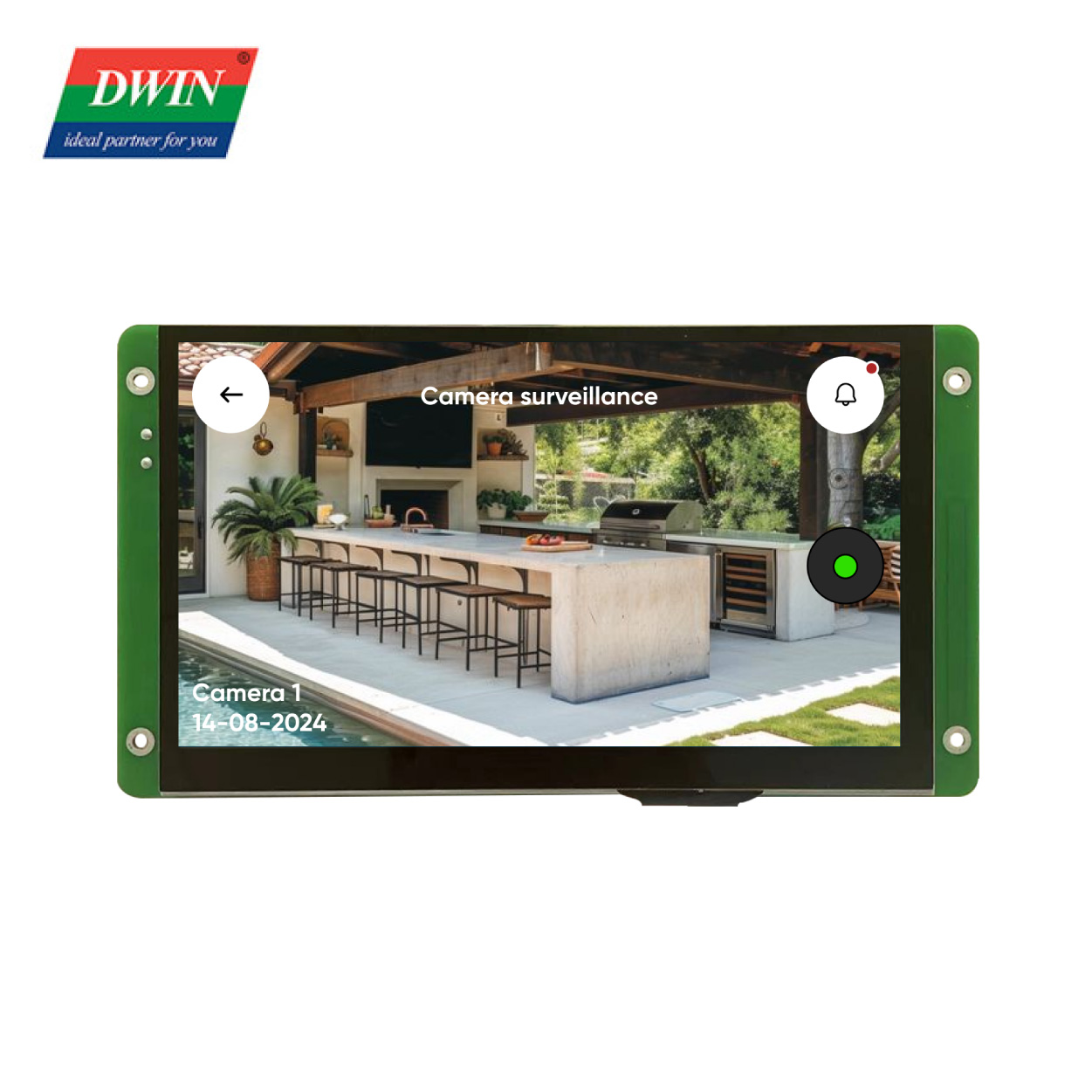

7.0 Inch TN LCD FSK bus camera scheme screen Model:DMG80480C070_26W (Commercial Grade)
description2
Specification
Model No. |
DMG80480C070_26W |
Serial Mode |
TTL/RS232*2 |
LCD Type |
TN |
User Interface |
8Pin_2.0mm |
Resolution |
800×480 |
Operating Voltage |
12~36V |
Color |
262K |
Operating Temperature |
-10℃~60℃ |
Active Area |
154.1mm×85.9mm |
Storage Temperature |
-20℃~70℃ |
LED Lifetime |
>20,000 h |
Conformal Coating |
None |
Brightness |
550/600/700nit |
Operating Humidity |
10%~90%RH, typical value of 60% RH |
